EAFC 12V Car Jump Starter Power Bank Portable Car Battery Booster ChargerStarting Device Auto Emergency Start-up Lighting

Feature:
Supports QC3.0 fast charging.
Stable voltage, current, balance charge function.
Class A cell, safe and explosion protective.
Upgrade 4 cell and start strongly.
1000A Peak current.
20000mAh Large Capacity.
Diesel 5.0L, gasoline 6.0L car can be used.
Reverse connection protection.
4 USB charging.
Full power can be started 30 times.
Support 18W phone fast charge.

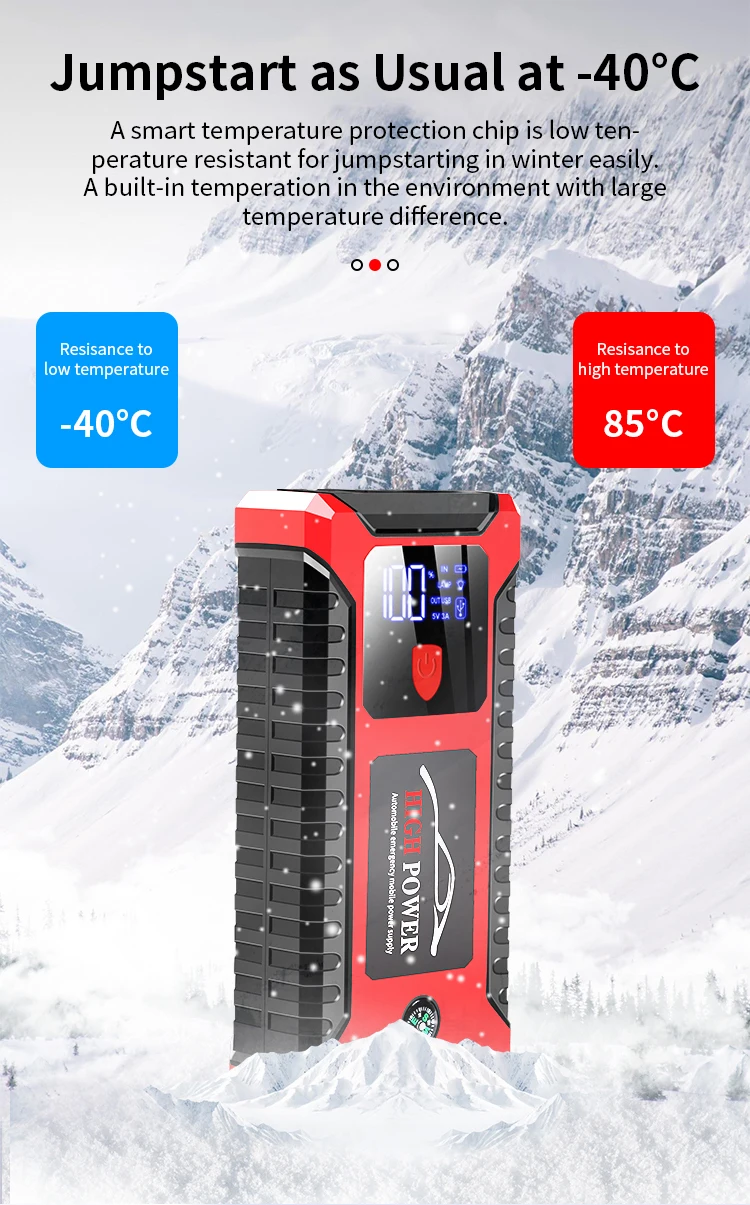

Limit temperature -40 ~ 80°C.
Intelligent Protection System.
The charging head of the product is European Plug or just usb cable.

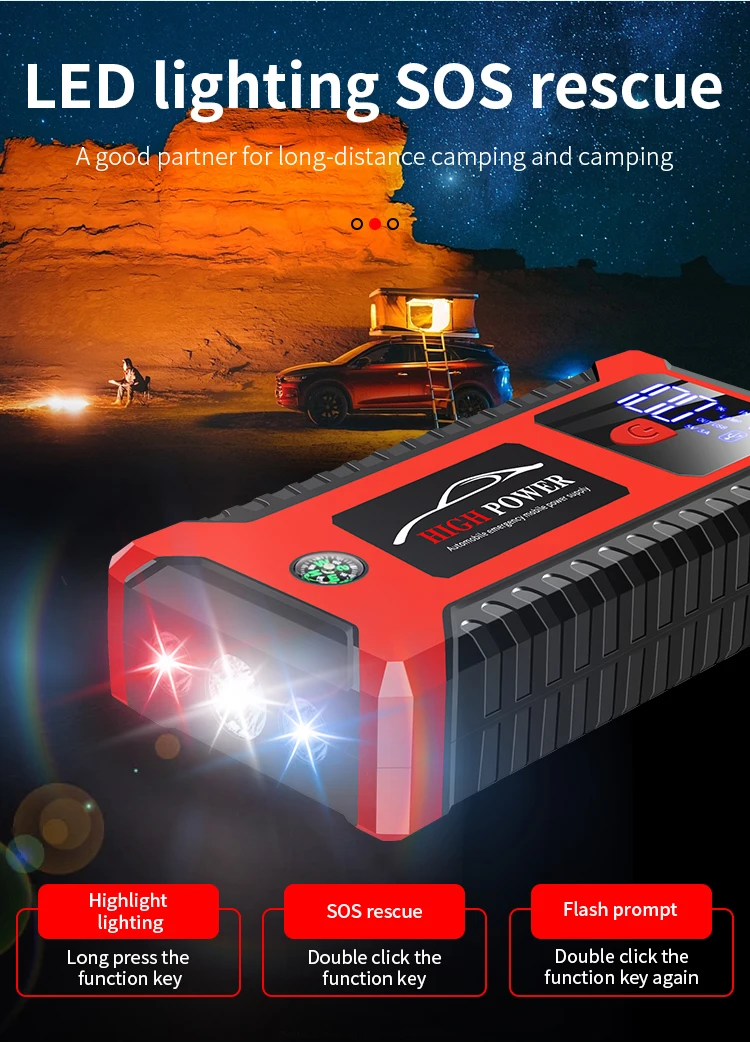

Night emergency, Rescue lighting:

1. Built-in glare lighting system.
2. Double click to enter,red and blue flashes,double click again to exit.
3.Long press the middle button for 3 seconds.
Press again in burst mode.
4. After turning on the flashlight,press the switch again to become a flash,the switch is the distress mode.

Warning:
Matters needing attention (buyers must see)
The product has just been received, you must first turn on the flashlight to discharge, and then charge the product for more than 4 hours, and then start the car, because the product is empty. This operation can prolong the service life of the product!
1. It is recommended to start the car with three bars or more than 60% of the power supply
2. Check whether the pile head of the battery is clean
3. Start the car with ordinary clip: Check whether the blue port of the clip is inserted to the end, whether the clip touches the positive and negative poles of the battery with the largest area, and whether the clip is stable and does not shake. First, clip the positive and negative poles of the clip to the positive and negative poles of the battery On, wait 2 to 3 minutes before starting the car. This operation can reduce the load on the power supply

Tips before use
【1】The car cannot be continuously ignited to start the car / or the key is not released, and the next start will be carried out after 30 seconds between each start
【2】The positive and negative poles cannot be reversed. Two clips cannot be connected short-circuited.
【3】Remove the clip within 30 seconds after successfully starting the car.
Violation of the above 3 points may cause the [fuse box] of the clip to burn out, please pay attention to the operation method.

Warm reminder:

Because each car owner has a different displacement and degree of electro-oxidation, the actual starting effect shall prevail.*According to the size of the car’s displacement/year limit/car’s power loss, the effect and frequency of a full-charged emergency power supply will be different.

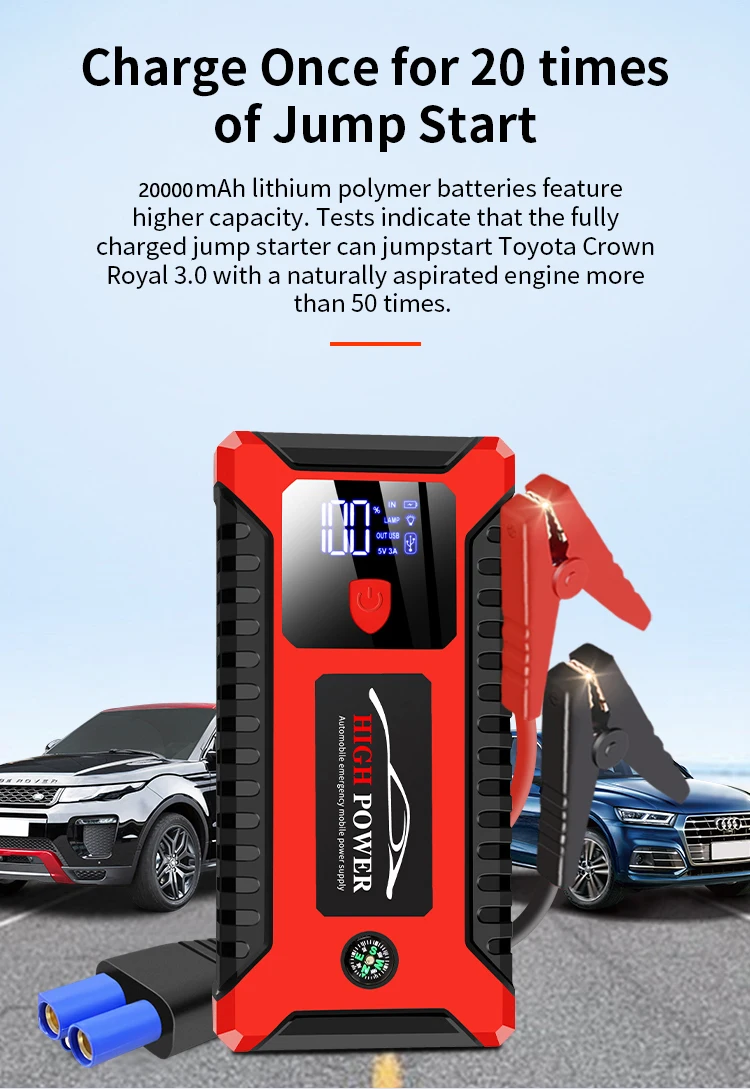

Charge Once for 20 times of Jump Start
20000mAh lithium polymer batteries feature higher capacity. Tests indicate that the fully charged jump starter can jumpstart Toyota Crown Royal 3.0 with a naturally aspirated engine morethan 50 times

Power supply

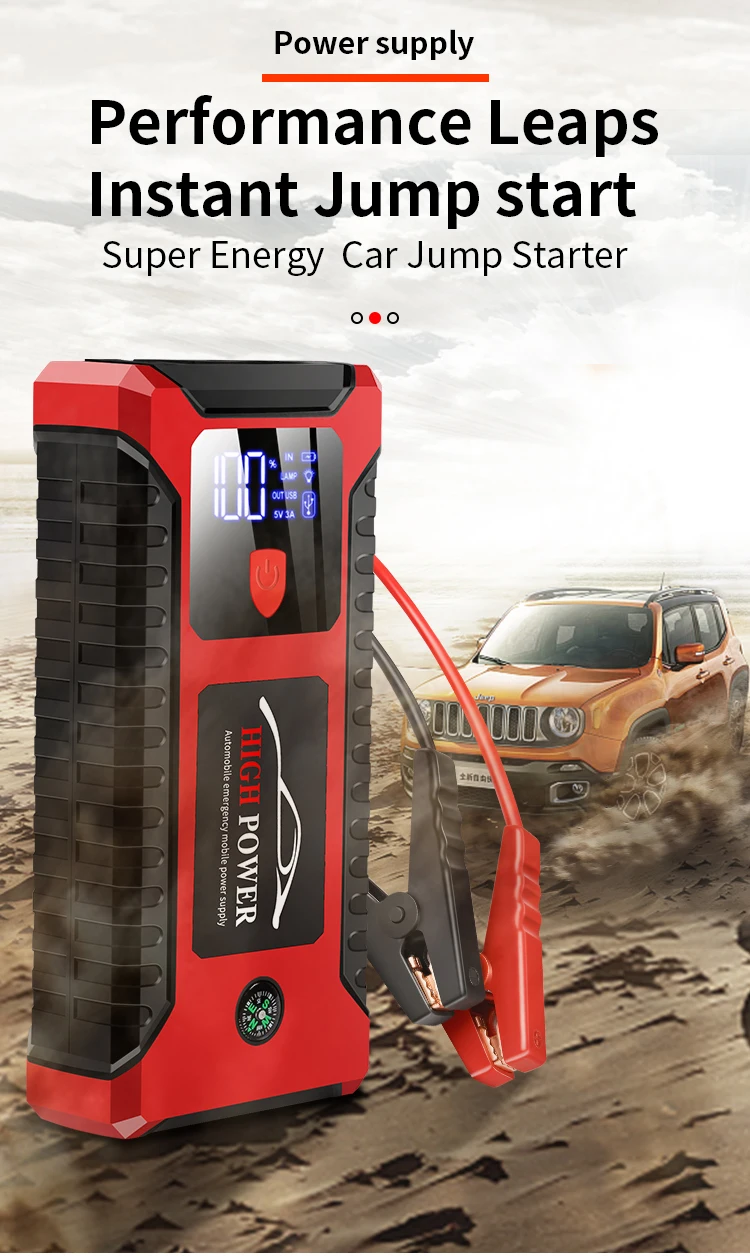

Performance Leaps
Instant Jump start
Super Energy Car Jump Starter

9 advantages to upgrade
Car Start(600A strong startup current)
9 great defenses (Overcharge protection)

High-rate lithium battery
Emergency Lighting(LED / SOS lighting)
Digital charging(Recharging and recharging)

1.Insert the clip into the power start clip,it is recommended ti display more than two battery levels.
2.The red clip (+) is connect to the positive electrode,the black clip(-) is connected to the negative electrode.

3.get into the car and start on the car
4.remove the clip .the start is complete!

Tips :
It is recommended to remove the clip within 30 second.

22000mAh:
Specifications:
Battery Capacity :22000 mAh
Peak Current :1200A
Starting Current :600A
Car Jump Start Output :12V
USB Output 5V/2A
Gas Engine Rating :Up to 6.0L
Operating Temperature :-20℃-60℃
Diesel and steam double start strong power
6.0L gasoline car: Support 12V/6.0 displacement and below

Note:

1: It takes about 3 hours for the product to be fully charged. Turn ON first and then charge the product.
2: when starting the car, you need to turn the switch to OFF before starting the car.
3: our car power supply has the difference between the peak value 400A and the peak value 600A. The product with a peak value of 400A is 40C, which can start gasoline-powered car with a displacement below 4.0. The doubling of peak 600A is 60C. Can start diesel vehicles with a displacement of less than 6.0 gasoline-powered car and a displacement of less than 2.0. (Except cars with aging engines.)
5: The product is not used for a long time. It is recommended to charge it once every 3 months.
6: The product needs to be placed at room temperature, which is beneficial to the service life of the product.

Special precautions for using mobile power:

1. When starting the car, insert the blue plug tightly and into place, otherwise the effect will be affected.
2. When starting the car, the blue power indicator should be more than 60%, which can prolong the service life of the product.
3. If the car cannot start, do not force it to start. Check whether the battery clip is properly clamped and whether the original car battery terminal is rusty and dirty. Continue to start after cleaning.
4. In the process of starting, if the vehicle cannot start all the time (1-2 times), do not force to continue starting, and further check whether there are other faults, otherwise, the fuse will be burned and the starting power supply will be damaged.
5: when starting the car, the clip port has been used to use air pump and other on-board electrical appliances, the switch needs to be turned OFF.
6: our car power supply uses different styles of 400A and 600A. If your car exceeds the number of products, the power supply will play an automatic power-off protection function when starting the car, plug in the charger and reactivate it to use it normally.
7: when the car is fed and there is no electricity at all, clamp the car power clip directly on the positive and negative poles of the car to start. If the car is powered, remove the positive poles, clamp the clip on the ground iron and the negative clip on the negative pole. Can be started.
8: when starting the car for the first time, you need to put off the electricity in the product, plug in the charger to charge it, and then start the car.
