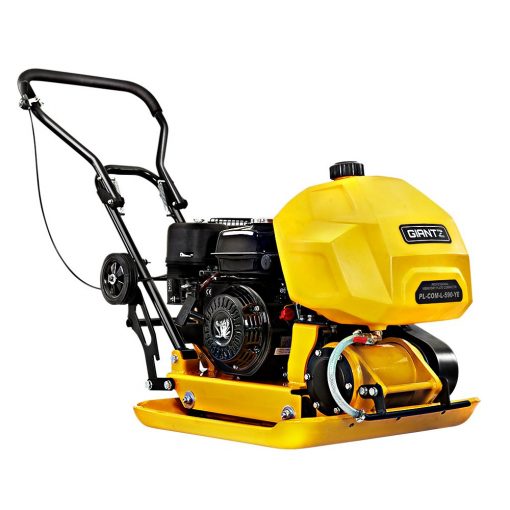

The most important part of any construction job is building the foundation, so it is important to use class leading equipment such as Giantz Plate Compactor. It has a powerful 6.5hp engine and uses the vibration of the heavy base plate to push down with an impact force of 1200kg and pack the soil tightly together, thereby eliminating the risk of the ground unsettling in the future. The plate compactor is easy to start with its pull start mechanism and runs on oil with a large fuel tank capacity of 3.6L. The anti-vibration handle with foam cotton reduces vibration to the user and makes the plate compactor safer and easier to use, with less fatigue. Mobility is not an issue with the attached wheels and wheeling to the worksite is a one-man job. Both the handle and wheels are foldable for easy storage
Features
Powerful 6.5hp engine
Superior 95kg power unit with huge 3.6L fuel tank
23-inch packer plate
35m/min walking pace
Convenient fold-away wheels
Specifications:
Engine Type: 6.5hp OHV
Displacement: 208cc
Type: Vibratory
Application: Soil
Net Power: 3.8kW/3600rpm
Starting System: Recoil pull start
Fuel Type: Regular Unleaded 95 +RON
Fuel Tank Capacity: 3.6L
Oil Capacity: 0.6L
Operation Mass: 95kg
Water Tank Capacity: 15.5L
Centrifugal Force: 20kN
Walk Speed: 35m/min
Plate Size: 580 x 500mm
Compaction Depth: Up to 350mm (Soil)
Frequency: 5500rpm
Package Content
1 x Giantz Plate Compactor
1 x User manual
