Kingspec 2280 M.2 SSD 64GB 128GB 256GB M2 SSD 500GB 512GB 2242 Internal Hard Drive Disco Duro Disk for Laptop/ Notebook/Desktop
Style: SSD
Brand Name: KingSpec
SATA Signal Model Number: NT-64(2242),NT-128(2242),NT-256(2242),NT-512(2242),NT-1TB(2242);NT-128(2280),NT-256(2280),NT-512(2280),NT-1TB(2280),NT-2TB(2280)
NVMe PCIe Signal Model Number: NE-128(2280),NE-256(2280),NE-512(2280),NE-1TB(2280)
Interface Type: M.2 2242(SATA Signal); M.2 2280 (SATA Signal) ;M.2 NVMe 2280(PCIe Signal)
Read/Write Speed: 410~520/110~200MB/S (for reference only)
Controller: MK8115/INIC6081
Type: Internal
Product Status: Stock
Warranty: 3 Years
Package: Blister Gift Box
Bad Block Management: Auto Bad Block Management In System
HDD Capacity: 64GB 128GB 256GB 512GB 1TB 2TB
Application: Laptop Desktop Notebook Computers etc
Support System: Windows XP Windows 7 Windows 2003 Windows 2008 DOS Linux Unix
Signal: SATA M.2 SSD,M.2 PCIe NVMe

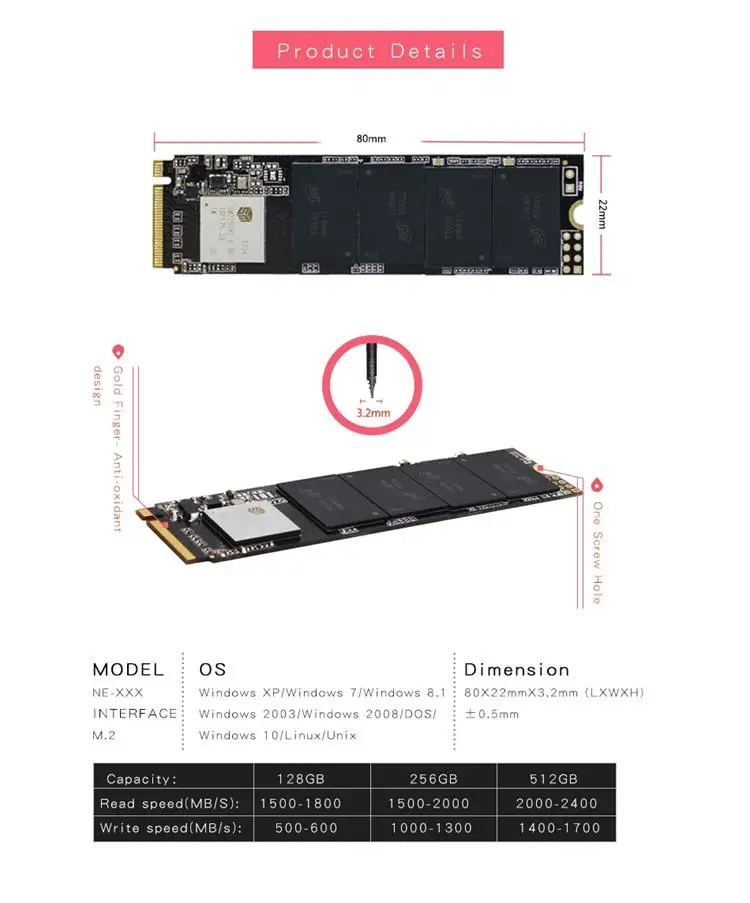

Size: 42mm (L)X 22mm(W)X3.5mm(H), 80mm (L)X 22mm(W)X3.5mm(H)
NAND Flash: TLC/MLC
MTBF: 1,000,000 Hours
Input Voltage: 3.3V (fluctuating around 5%)
Operating Temperature: 0~+70 Celsius
Non-operating Temperature: -20 Celsius~+75 Celsius
Ambient Humidity: 5-95%
Write to Life: Using 3-5 years if write 100GB every day
128GB SATA Signal M.2 2242 Test Data for reference only

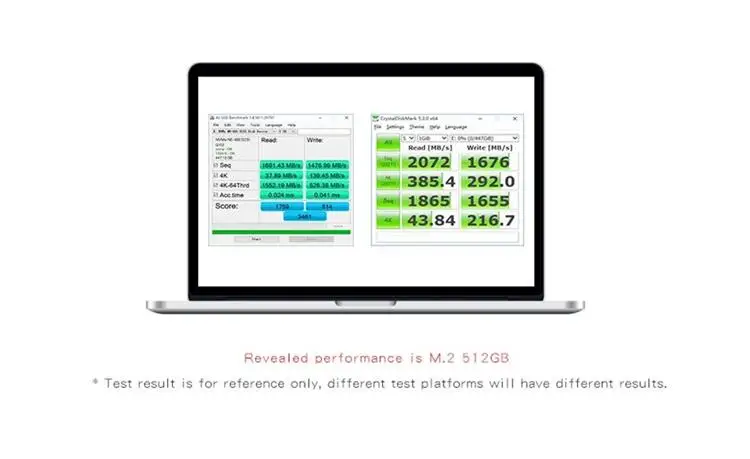

512GB PCIe Signal NVMe M.2 2242 Test Data for reference only

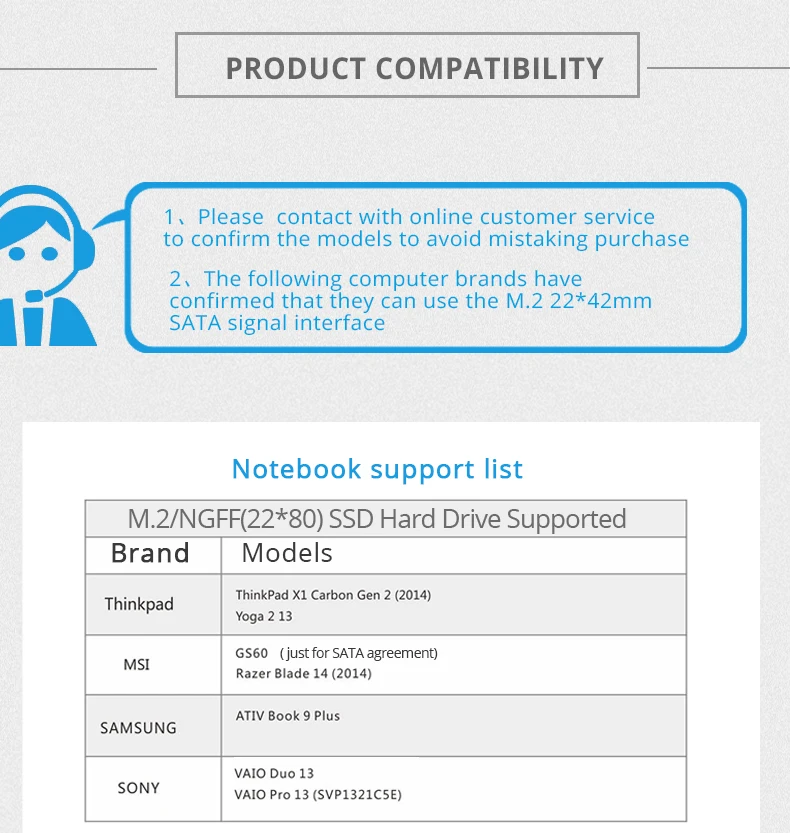

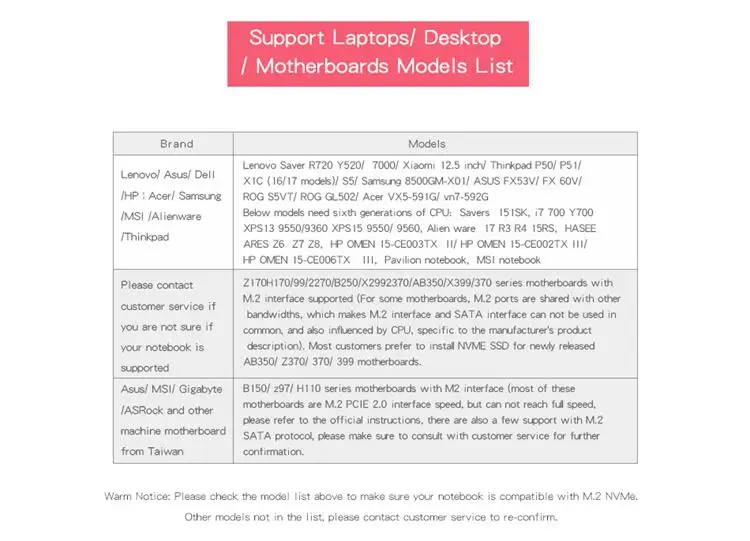

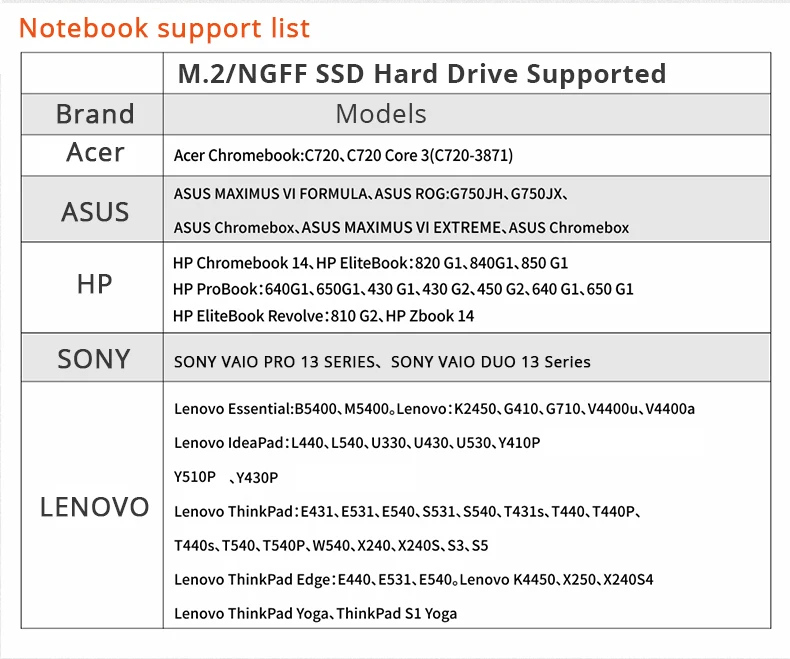

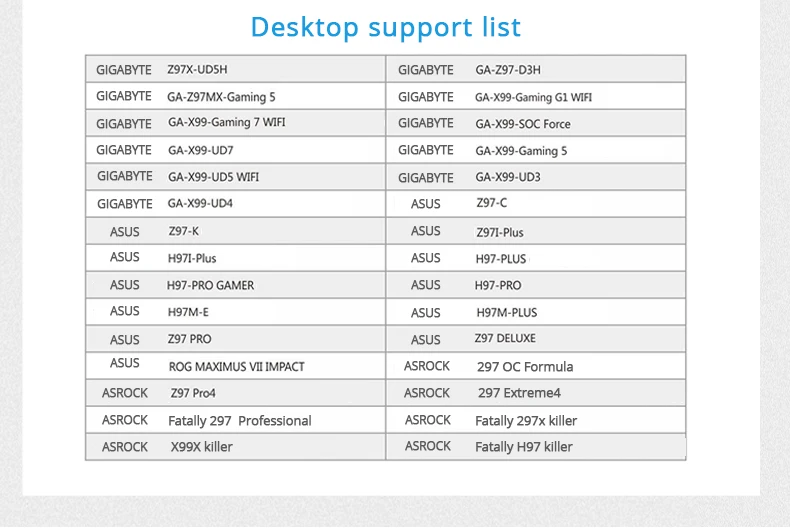

The following computer is compatible with M.2 NVMe PCIe3.0x4
Please kindly leave us 5 stars positive feedback, we will try our best to do better. We focus at customer's satification and always put it in highest priority.
If you have any problem with the item, we can always try our best to provide a good solution. Please do contact us in advance before leaving any negative/neutral feedback.
Good communcation is important for us.We are for sure can make it a successful transaction for you.
Thank you for your patronage and kindly !
About Real Capacity:
Tips: Flash memory vendors are using decimal arithmetic:1MB = 1000KB,1G = 1000MB calculated, the operating system using binary arithmetic:1MB = 1024KB,1GB = 1024MB; We use a little space as bad block management software for SSD's stable using, Pls notice that all of the SSD must have the Bad Block Management sofeware for its running well. So there are some differences between display capacity and nominal capacity of flash memory product. 32GB is about 28.8GB; 64GB is about 59.5GB; 128GB is about 119.04 GB.the real capacity will be: Capacity x 0.93
Please Kindly NOTE:
All product pictures and model numbers are for reference only. As product appearance and model numbers are in the process of replacement recently. Old and new casing will be delivered randomly ever since. Thanks for your understanding.Please don't worry about if it is original from our factory or it, if you get a new case dfferent from the weblink you ordered.
Shipping:
1. We usually ship item out within 48 hours after payment cleared except weekend in normal condition.
2. Please make sure your shipping address and contact name are right.
3. Please kindly do not 1-3 low scores on shipping cause the oversea shipping will be affected by many factors such as customs processing, post strike, etc.
| Brand Name | KingSpec |
|---|---|
| Model Number | 64GB 128GB 256GB 512GB 1TB 2TB M.2 NGFF 2280 |
| Item Condition | New |
| Read/Write Speed | 400~520/100~350MB/s(for reference only) |
| Nand Flash Type | TLC |
| Controller | MK8115/INIC6081 |
| Interface Type | 2280 M.2 PCIe NVMe SSD |
| Size | 22*42mm; 22*80mm |
| Style | SSD |
| Package | Yes |
| Type | Internal |
| Average Access Time | 0.05ms |
| Warranty | 3 Years |
| Hard Disk Package | Blister Gift Box |
| Bad Block Management | Auto Bad Block Management In System |
| HDD Disk Capacity | 64GB 128GB 256GB 512GB 1TB 2TB |
| Application | Laptop,Desktop,Notebook,Computers,etc |
| SSD Signal | SATA M.2; PCIe NVMe M.2 |
| NAND Flash | TLC/MLC |
| HD SSD Write to Life | Using 3-5 years if write 100GB every day |
| Internal Hard Disk MTBF | 1,000,000 Hours |
| Input Voltage | 3.3V (fluctuating around 5%) |
| Operating Temperature | 0~+70 Celsius |
| Ambient Humidity | 5-95% |
| Non-operating Temperature | -40 Celsius~+85 Celsius |
| M.2 SSD Size | 42mm(L)X 22mm(W)X3.2mm(H);80mm(L)X 22mm(W)X3.2mm(H) |
| Hard Drive Disco | M.2 SSD PCI-e NVMe ;M.2 SSD SATA Signal NGFF |
