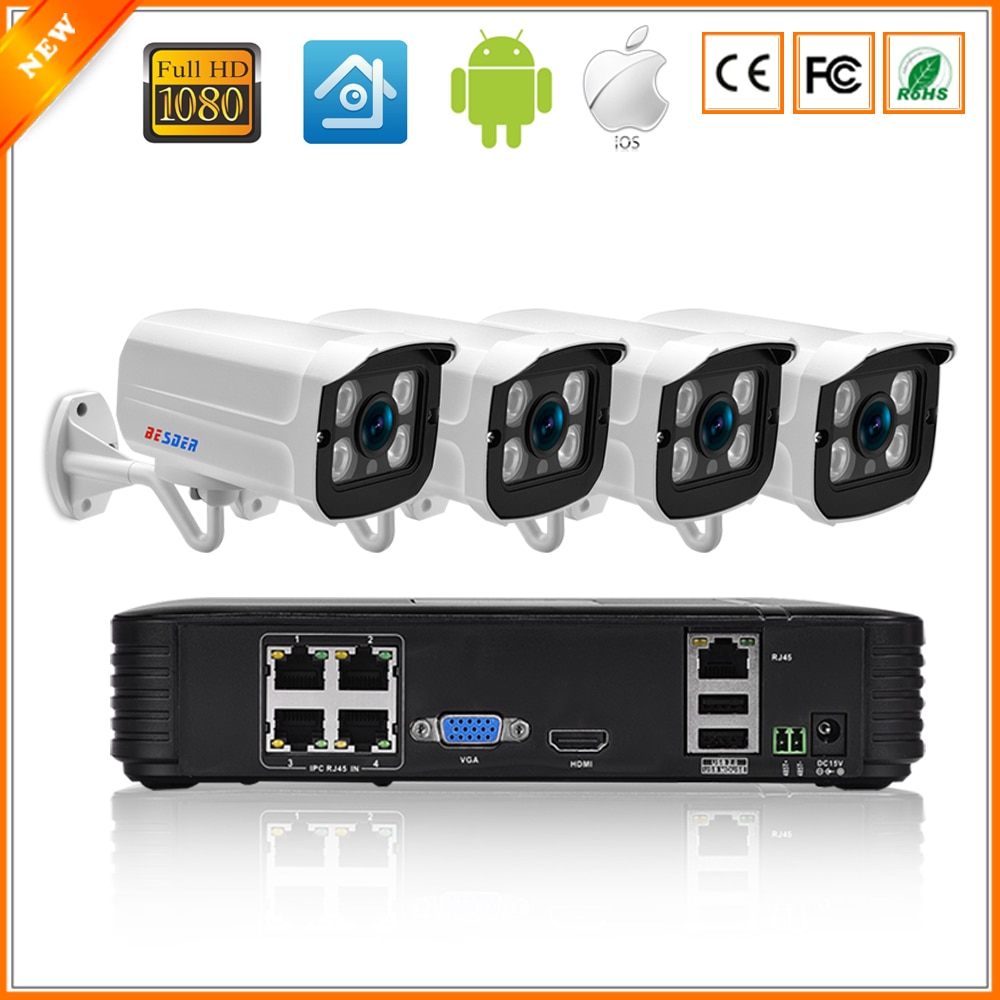

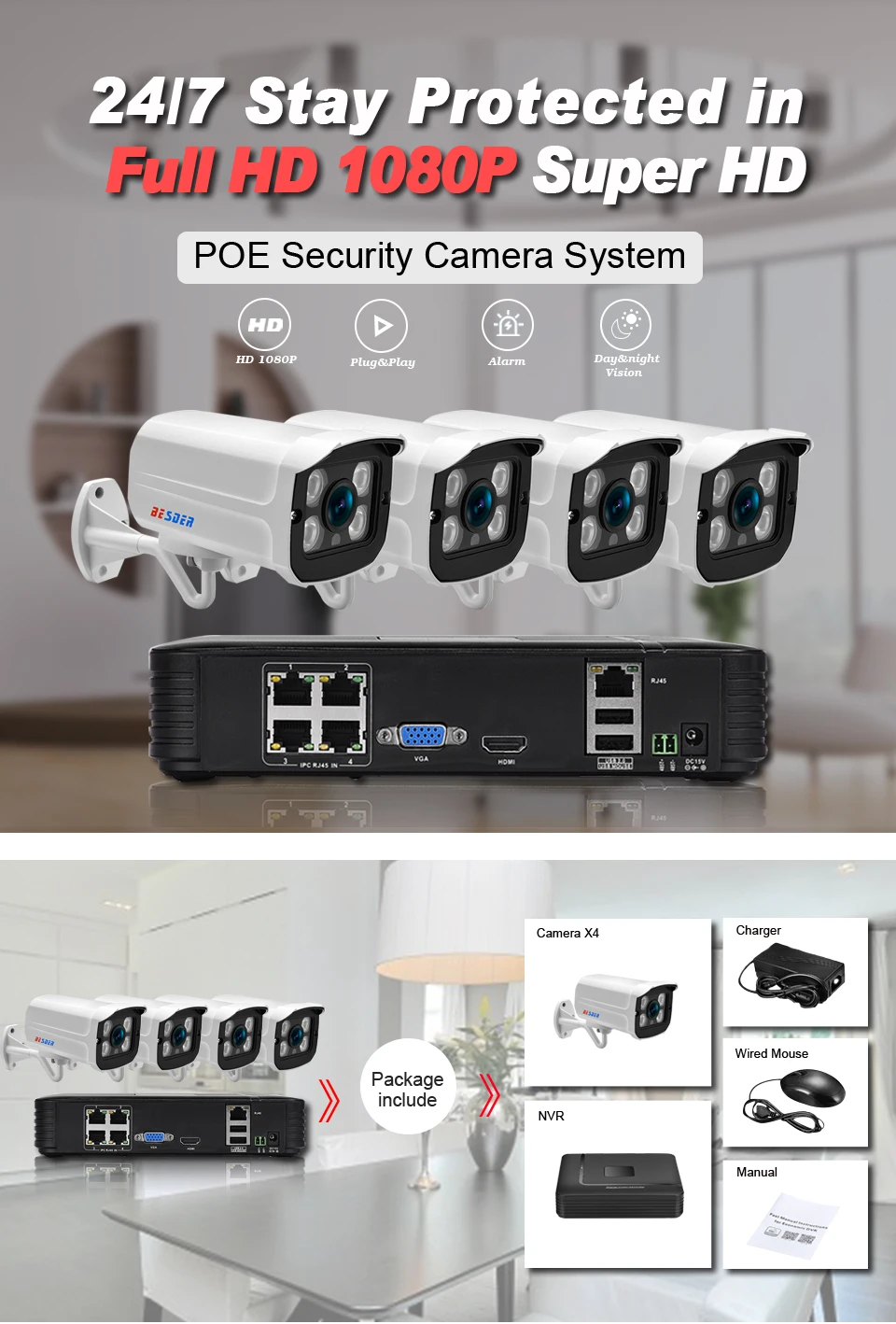

BESDER Full HD 1080P 4Channel CCTV System 4pcs 2MP Metal Outdoor IP Camera 4CH 1080P POE 15V NVR CCTV Kit HDMI P2P Email Alarm

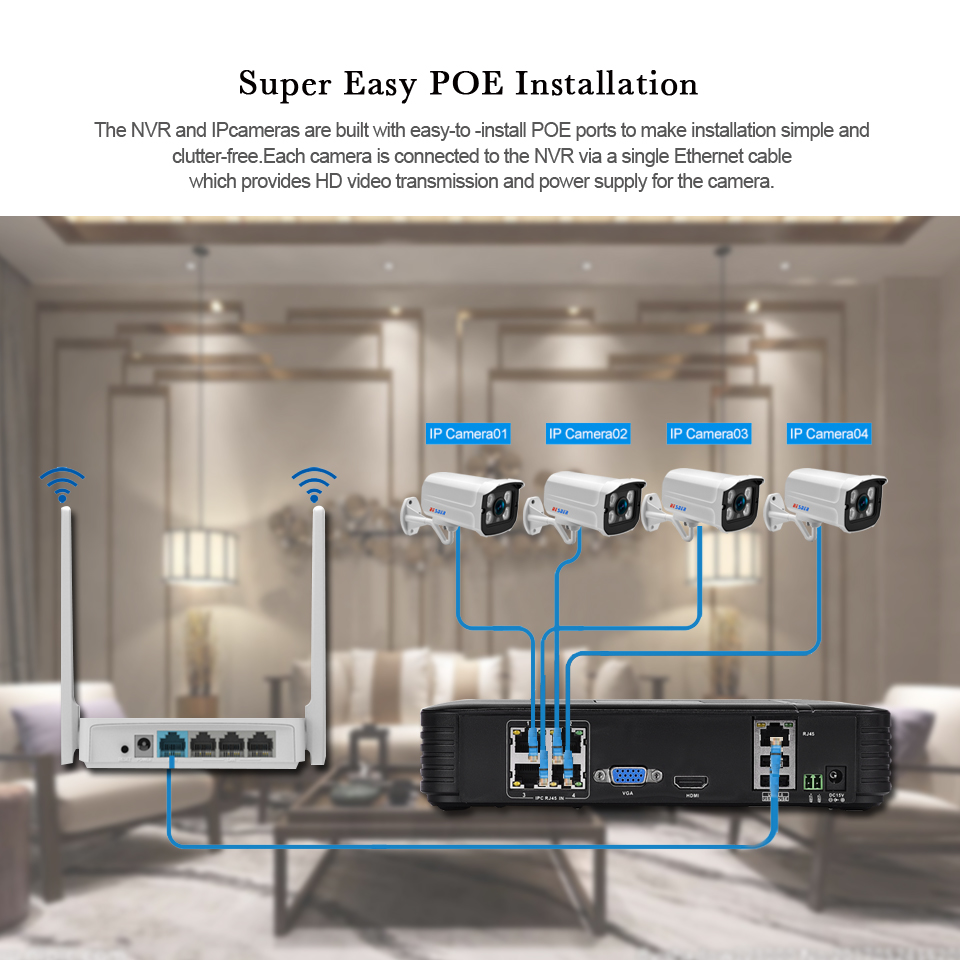

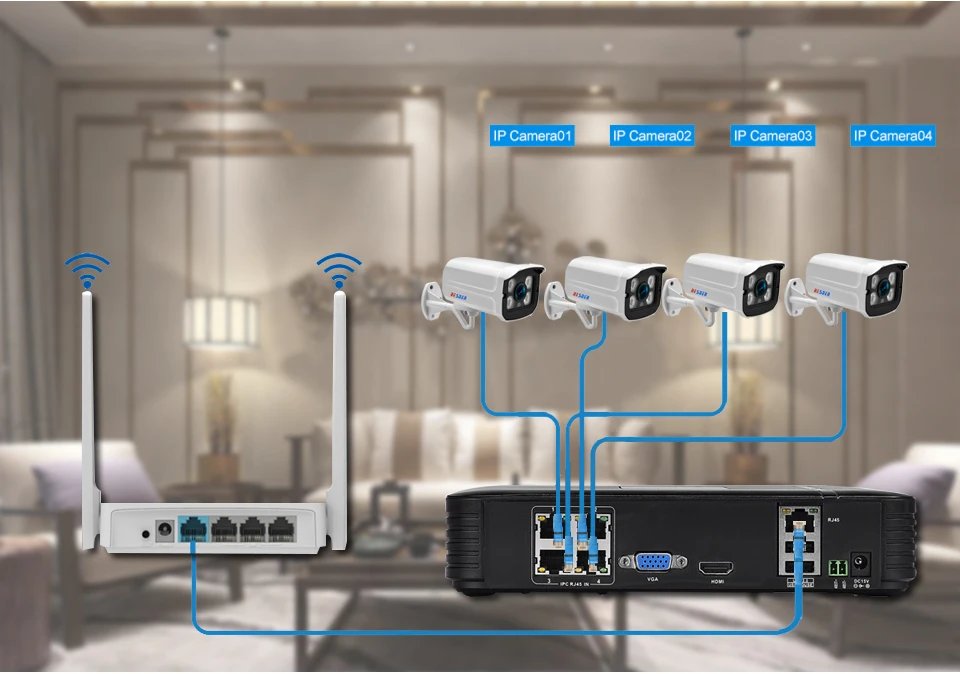

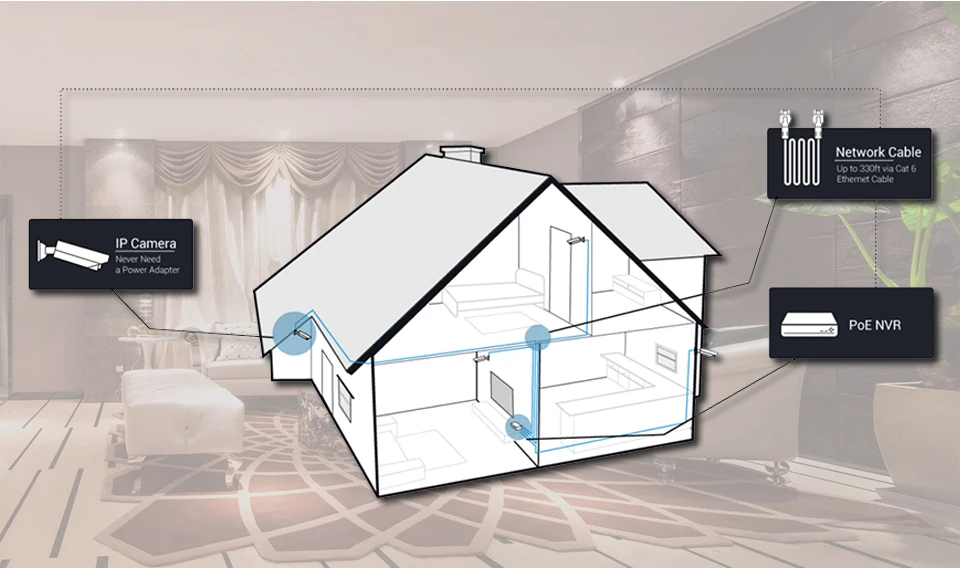

POE – Easy Setup, Even For a Beginner

A real plug and play security system! With a single network cable connecting each IP camera to the NVR for both power supply and video singal transmission.

Simplify installation and reduce

This new POE (Power over Ethernet) camera is equipped with only one network cable to both provide power supply and transmit video signals. Equipped with only one network cable to both provide power supply and transmit video signals. This literally simplified the installation and reduced costs.

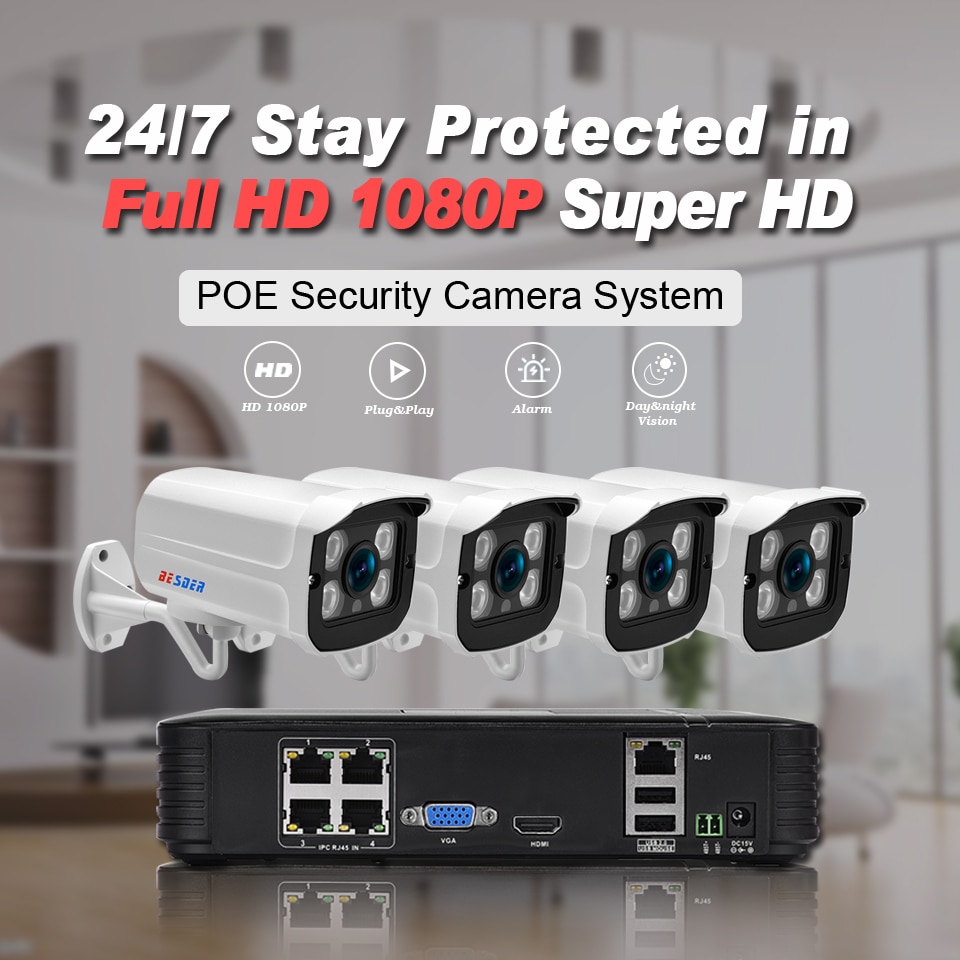

Super HD 1080P High resolution

All cameas provide insredily bright and sharp image in real color which enables you to see all objects very clearly.

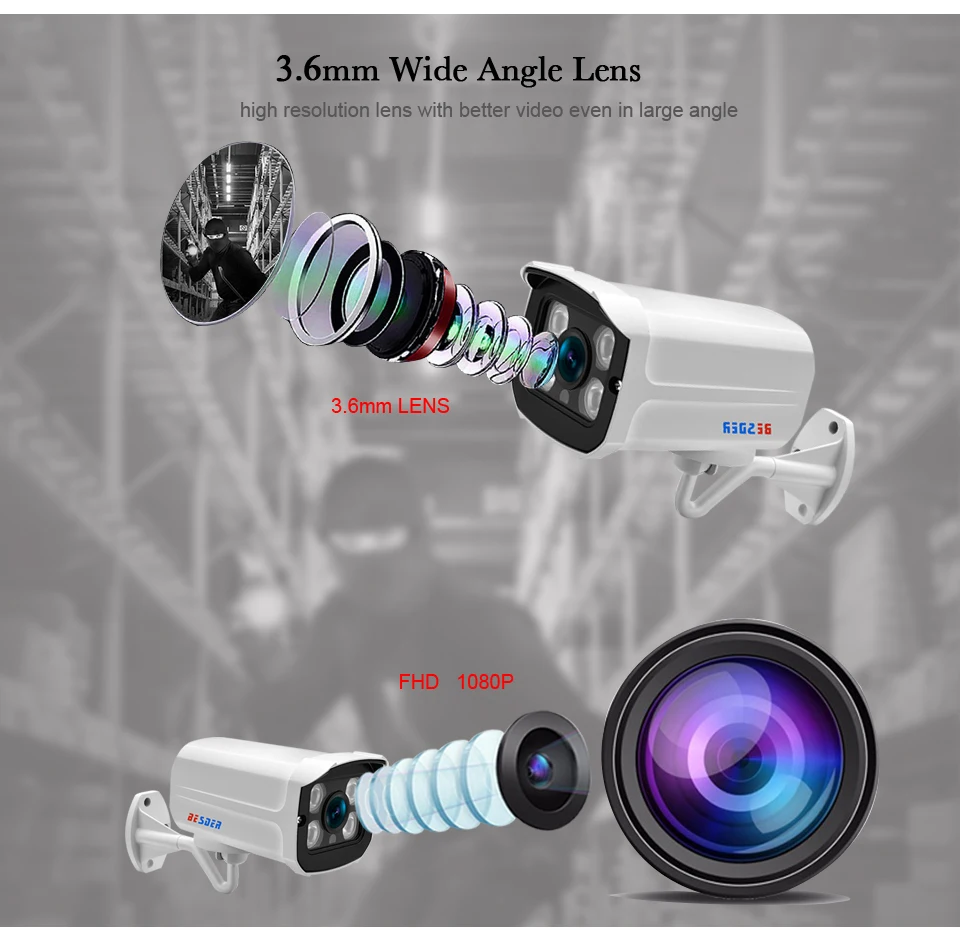

Full HD 1080P Lens

Hight resulution lens with better video even in large angle

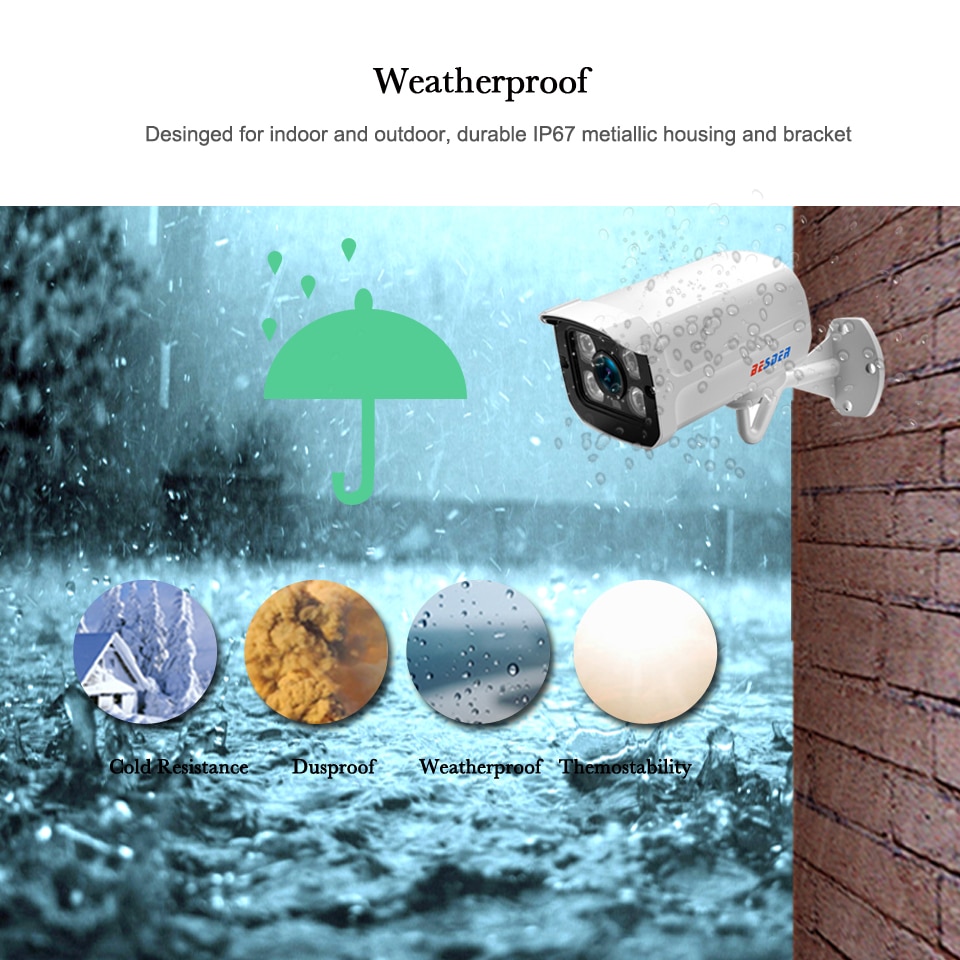

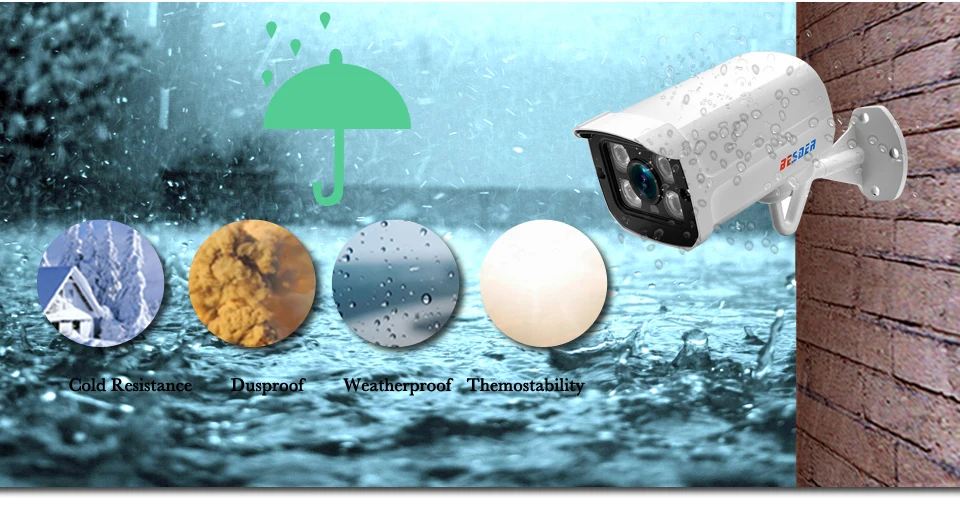

Weatherproof and Waterproof IP66

Desinged for indoor and outdoor, durable IP66 ABS Plastic housing and braket

Motion detection& E-mail alert

With the motion detection function, the camera is able to detect any movements happened in your house and record it. Any movements can be detected and recorded via the motion detection function and alarming e-mail will be sent timely to leave you enough time for precautions.

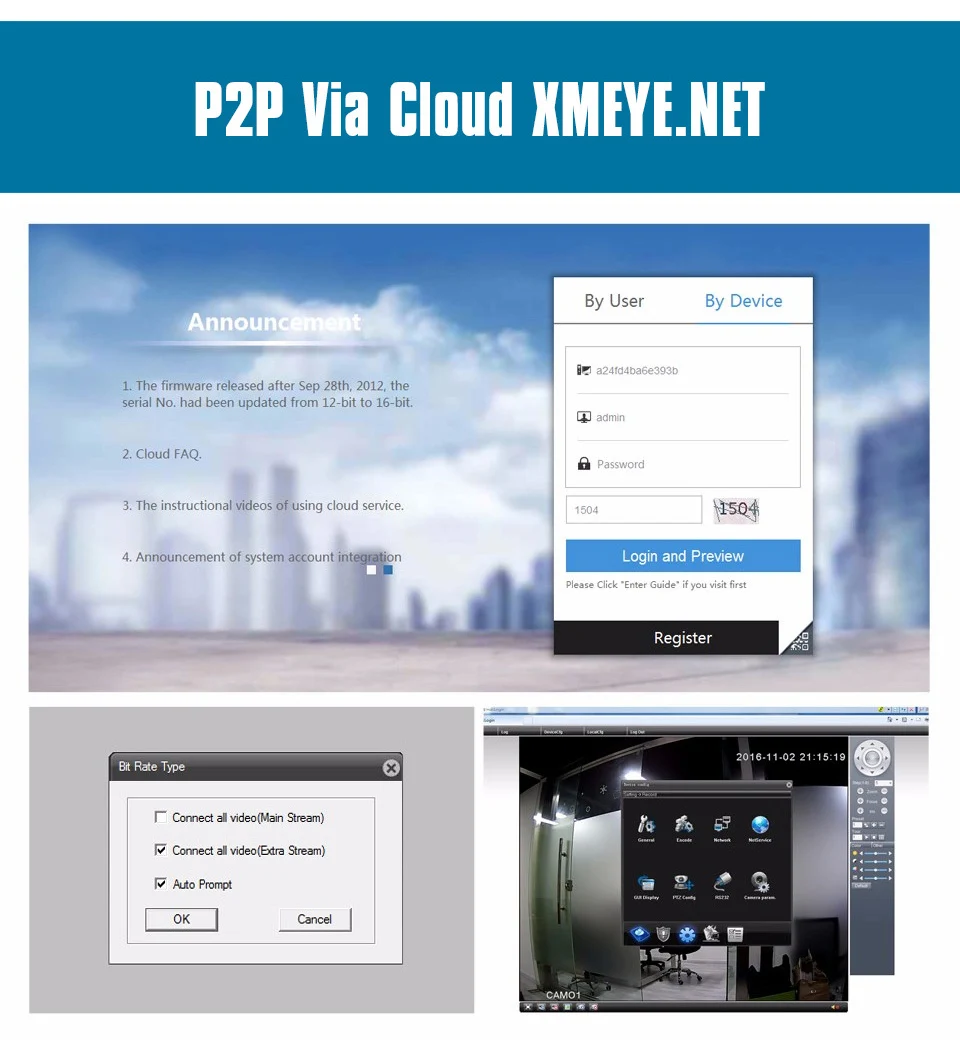

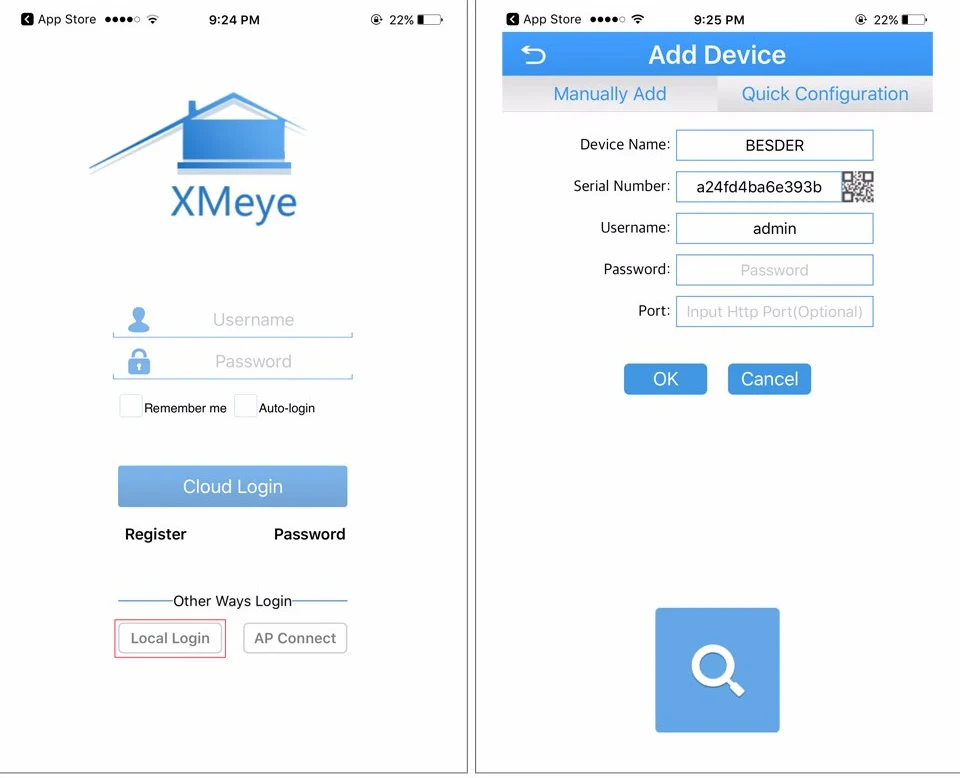

P2P cloud technology

The P2P technology enhances the capacity, bandwidth and computing ability of the network system by allowing the entire client to provide network source. In conjunction with our DVR, users will enjoy a more flexible, reliable access to the recorded video without needing to download it like before.

Day and Night vision

Built in IR-Cut filter with IR distance 25 meters, the smart IR-Cut anyomatical switches between day and night to bring solid protection all the time

Locate Incident Video with Smart Play

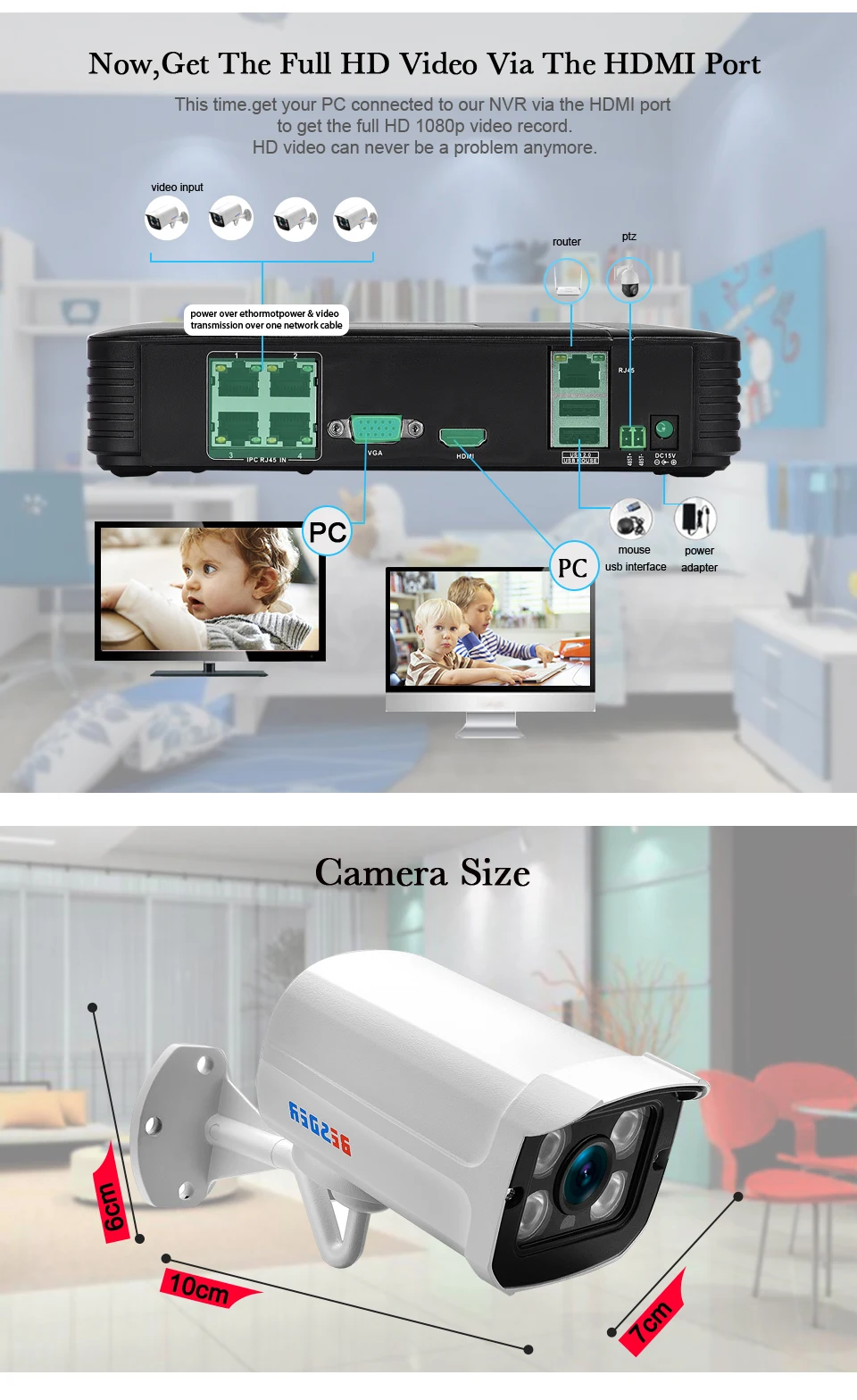

HDMI and VGA interface choice of output port

Our NVR provide two output ports: HDMI and VGA interface. Connect your TV or monitor to the corresponding port. Either way, you are guaranteed to get a crystal clear video of your home and office.

Warm tips: The Voltage Output of POE NVR is 15V,it must work with our Cameras!

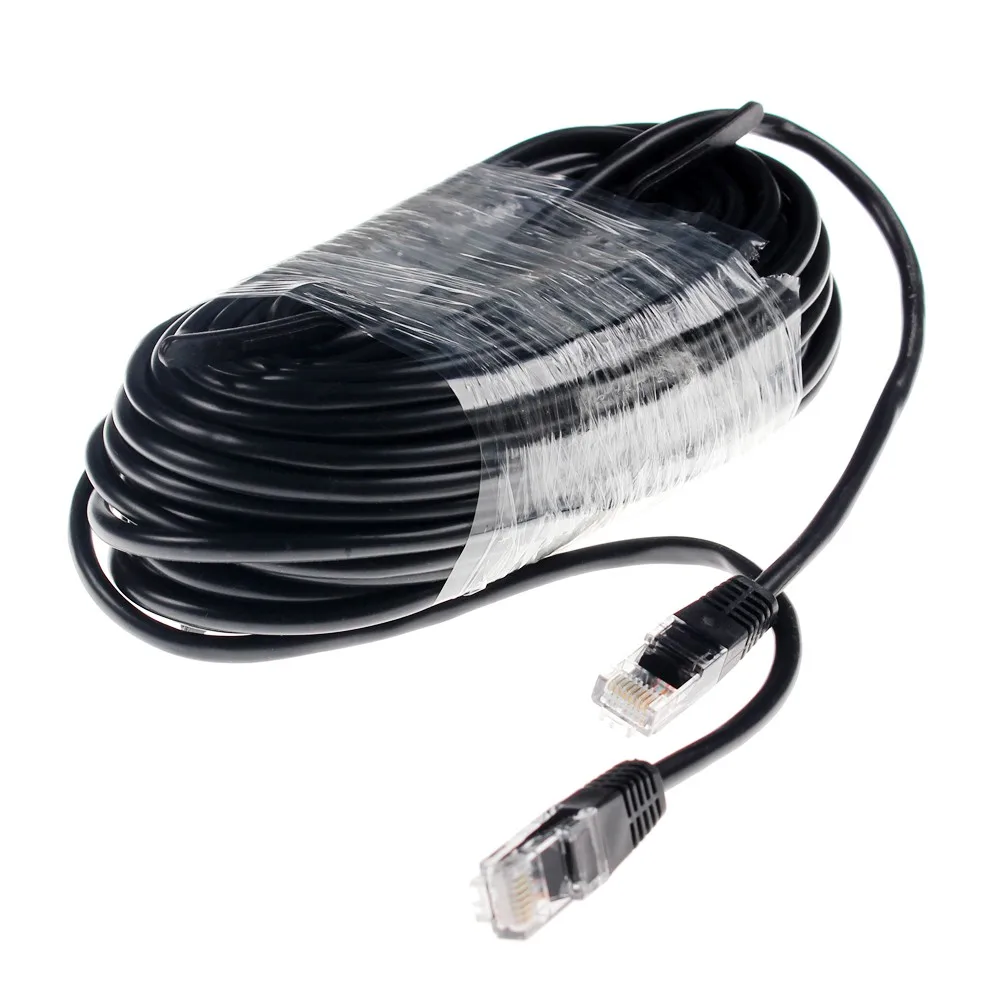

The transmission distance through Rj45 network cable of this POE NVR can up to 30 meters!

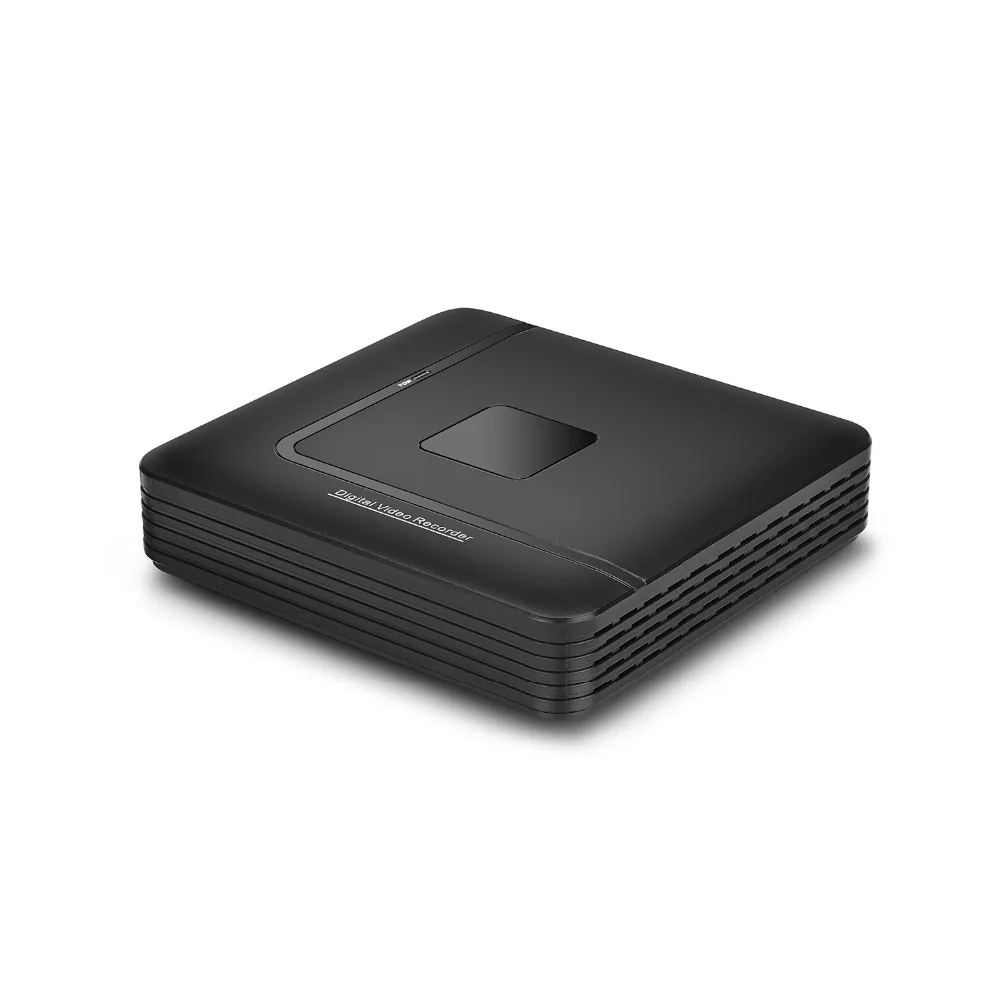

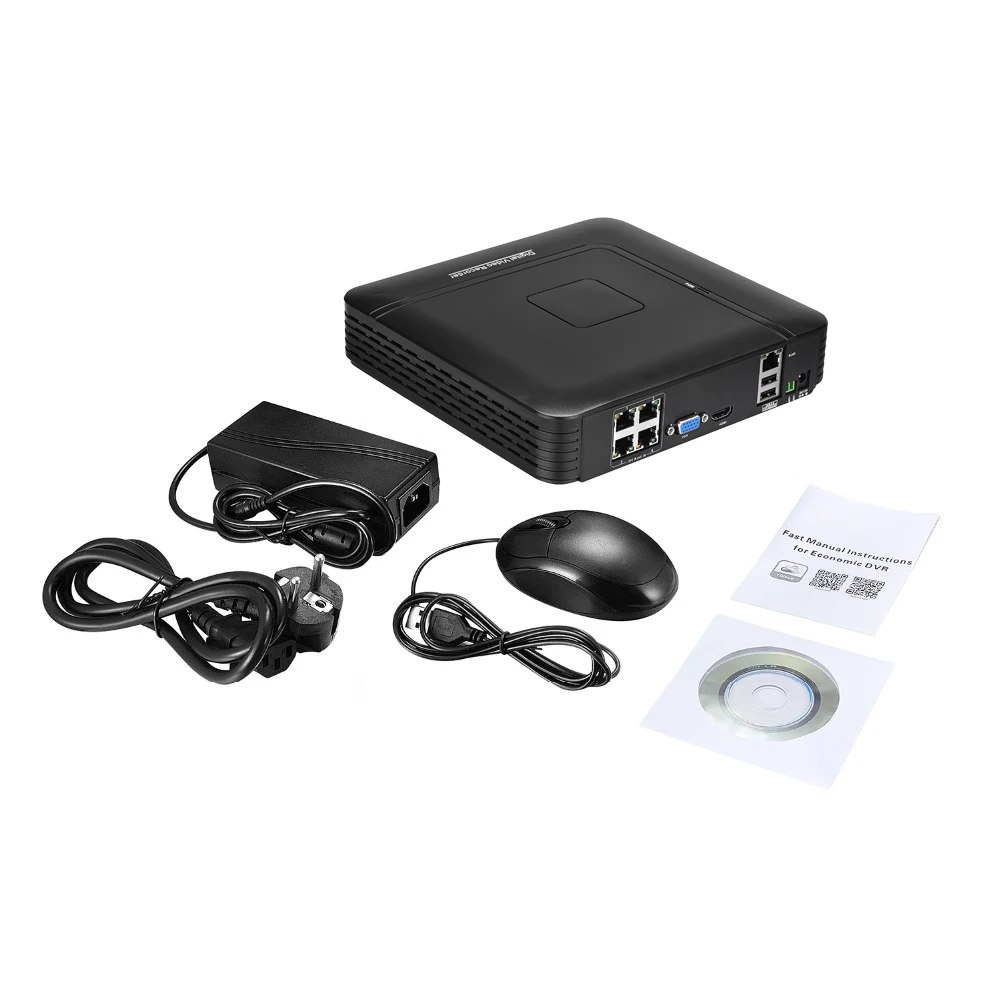

NVR Specification
Features:
1) Support 4CH POE power supply. No need to do cabling for power.
2) Support data exchange. No need to connect extra switch.
Video Surveillance Quality	1080P
Video Input	4CH 1080P HD IP Camera Access
Video Output	HDMI, VGA
Recording Frame Rate	15FPS
Recording Resolution	1920*1080@15FPS,

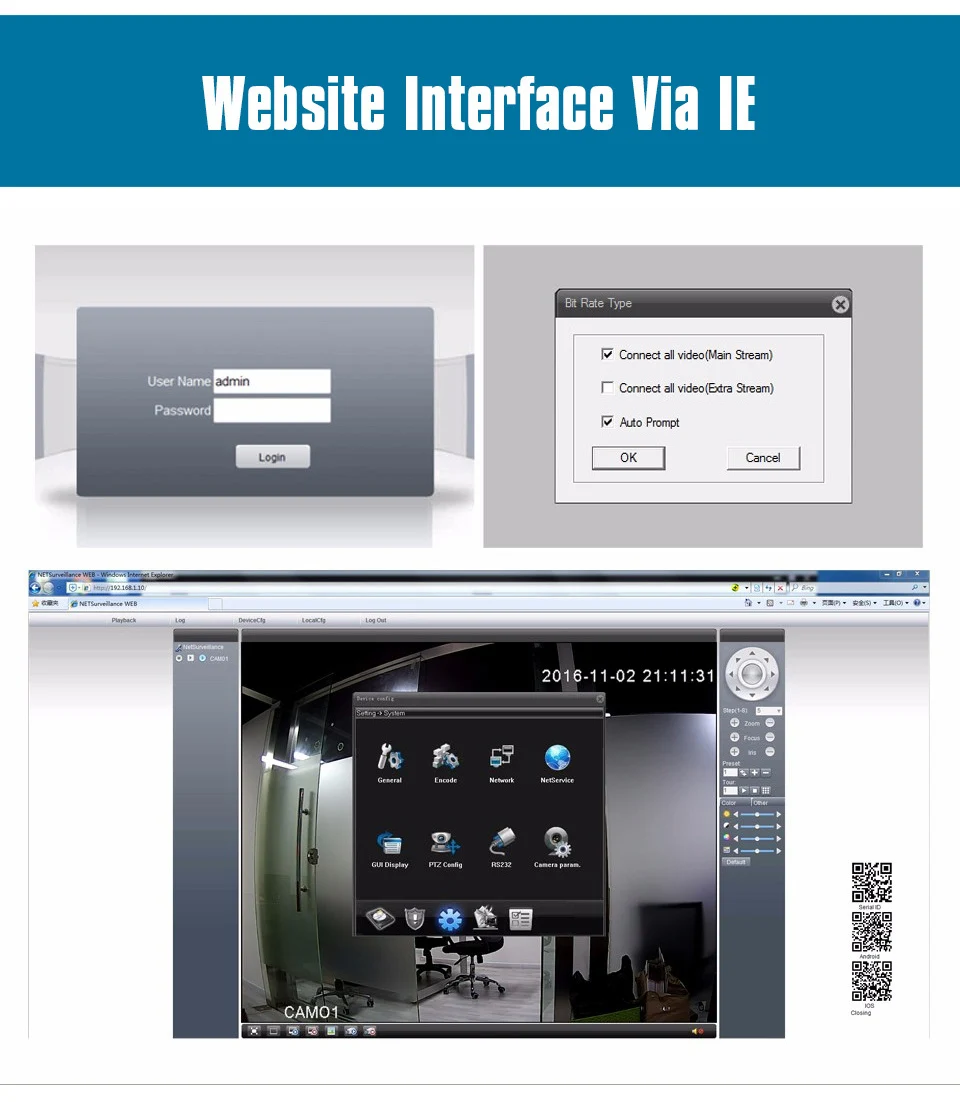

Network Interface	1 RJ45 ethernet interface, support 10/100M adaptive; support WEB surveillance;
	support FTP/ PPPOE/ DHCP/ DDNS/NTP/ UPnP, network Protocol;
POE Power	RJ45*4
Hard Disk Interface	3.5″ SATA Interface * 1
Size	223mm x190mm x 40mm
Power	DC15V

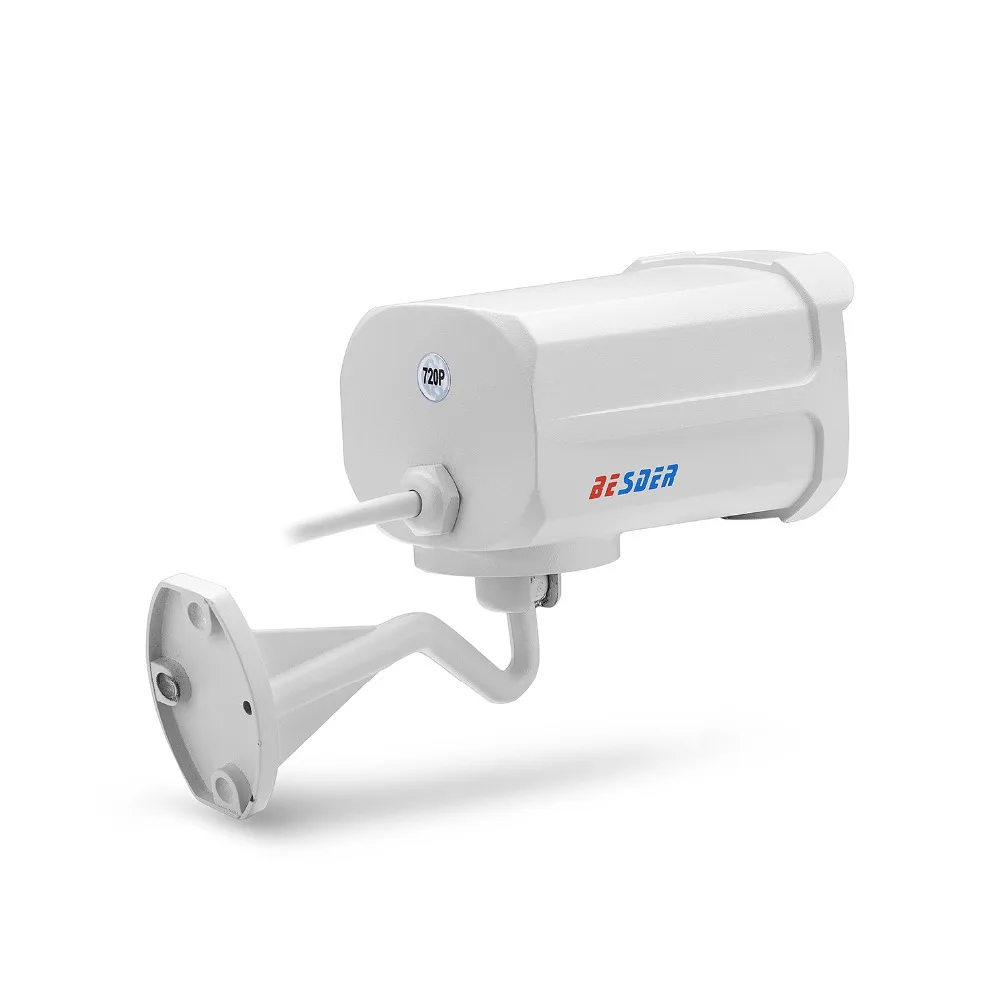

Camera
Sensor	1/ 2.8″ CMOS Image sensors
Video processing	H.264 video encoding, support dual stream, AVI formats;Support for stream 0.1M~6Mpbs adjustable
Minimum illumination	Color 0.1Lux, F1.2; B/W 0.01 Lux, F1.2
Audio Processing
Image Output	Main stream: 1920*1080P
UTP interface	1 RJ45 Ethernet interface, 10/100M automatically adapting; Support RTSP/FTP/PPPOE/DHCP/DDNS/NTP /UPnP etc Network protocol
Frame rate	2.0 Mega pixels 15 fps (not real time)
Lens	Lens 3.6 / 2.8/ 6mm/8mmmm optional (standard 3.6mm)
camera IR LED	24 IR lEDs
Storage function	Optional storage USB device, back end NVR and platforms
Protocol	Support ONVIF 2.0
Power input	15V
Special Function	Support dual stream, mobile monitoring

More Advantage Simplify installation and reduce This new POE (Power over Ethernet) camera is equipped with only one network cable to both provide power supply and transmit video signals. Equipped with only one network cable to both provide power supply and transmit video signals. This literally simplified the installation and reduced costs. Digital 1080P for crystal clear videos It is totally digital high definition with advanced image processing technology which brings your video back to life. Comparing with other analog system, BESDER POE system transmit digital signal and restore the most vivid images for you without distortion. Easy remote access Intuitive interface, convenient installation and easy remote control, this is all the advanced security system provides. Viewing on the monitor at home is no longer the exclusive way that we can get the video of our loved ones. Motion detection& E-mail alert With the motion detection function, the camera is able to detect any movements happened in your house and record it. Any movements can be detected and recorded via the motion detection function and alarming e-mail will be sent timely to leave you enough time for precautions. P2P cloud technology The P2P technology enhances the capacity, bandwidth and computing ability of the network system by allowing the entire client to provide network source. In conjunction with our DVR, users will enjoy a more flexible, reliable access to the recorded video without needing to download it like before. Thanks to the P2P cloud technology, users will enjoy a more flexible, reliable access to the recorded video without needing to download it like before. Loop recording& Playback As we know the storage space is limited. But loop recording could guarantee continuous recording yet cover the previous video when the memory if full by overwriting the unprotected video meanwhile the protected ones remain safety. HDMI and VGA interface choice of output port Our NVR provide two output ports: HDMI and VGA interface. Connect your TV or monitor to the corresponding port. Either way, you are guaranteed to get a crystal clear video of your home and office. Save installation cost with Power over Ethernet Each camera is connected with only one cable to NVR, through which it can transmit video image and get charged. This POE technology simplifies the security kit and makes it more convenient for you to use it.
